THÔNG SỐ KỸ THUẬT
Sản phẩm | Bo mạch chủ |
Tên Hãng | Gigabyte |
Model | Z690 AORUS MASTER DDR5 |
CPU hỗ trợ | Intel |
Chipset | Z690 |
RAM hỗ trợ | Support for DDR5 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules. - 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
Khe cấm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16), 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) |
Ổ cứng hỗ trợ | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x4/x2 SSD support) (M2C_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors |
Cổng kết nối (internal) | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points |

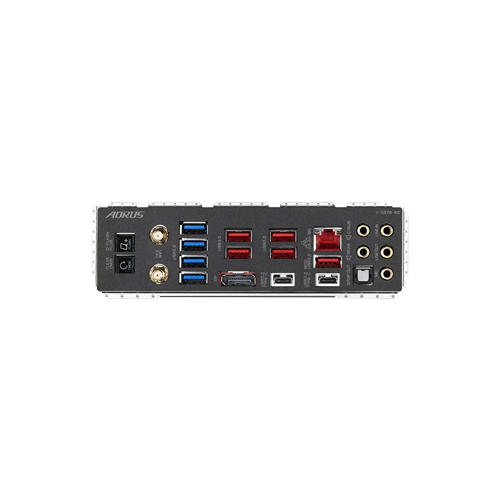

Cổng kết nối (Back Panel) | 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
LAN / wrieless | Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
Kích cỡ | E-ATX Form Factor; 30.5cm x 25.9cm |
Sản phẩm | Bo mạch chủ |
Tên Hãng | Gigabyte |
Model | Z690 AORUS MASTER DDR5 |
CPU hỗ trợ | Intel |
Chipset | Z690 |
RAM hỗ trợ | Support for DDR5 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules. - 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
Khe cấm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16), 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) |
Ổ cứng hỗ trợ | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x4/x2 SSD support) (M2C_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors |
Cổng kết nối (internal) | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points |
Cổng kết nối (Back Panel) | 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
LAN / wrieless | Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
Kích cỡ | E-ATX Form Factor; 30.5cm x 25.9cm |
