THÔNG SỐ KỸ THUẬT
Sản phẩm | Bo mạch chủ |
Tên hãng | GIGABYTE |
Model | B560M GAMING HD |
CPU hỗ trợ | Intel |
Chipset | Intel® B560 |
Ram hỗ trợ | 2 x DDR4 DIMM sockets supporting up to 64 GB 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:Support for DDR4 2666/2400/2133 MHz memory modules |
Khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x1 slot (PCIEX1) |
Ổ cứng hỗ trợ | 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 4 x SATA 6Gb/s connectors |
Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
Cổng kết nối (Back panel) | 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
LAN / Wireless | Realtek® GbE LAN chip (1 Gbit/100 Mbit) |
Kích cỡ | Micro ATX Form Factor; 24.4cm x 22.5cm |
Sản phẩm | Bo mạch chủ |
Tên hãng | GIGABYTE |
Model | B560M GAMING HD |
CPU hỗ trợ | Intel |
Chipset | Intel® B560 |
Ram hỗ trợ | 2 x DDR4 DIMM sockets supporting up to 64 GB 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:Support for DDR4 2666/2400/2133 MHz memory modules |
Khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x1 slot (PCIEX1) |
Ổ cứng hỗ trợ | 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 4 x SATA 6Gb/s connectors |
Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
Cổng kết nối (Back panel) | 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
LAN / Wireless | Realtek® GbE LAN chip (1 Gbit/100 Mbit) |
Kích cỡ | Micro ATX Form Factor; 24.4cm x 22.5cm |
TIN TỨC MỚI NHẤT

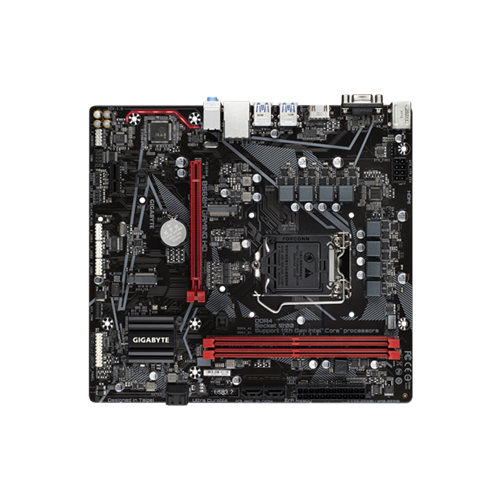

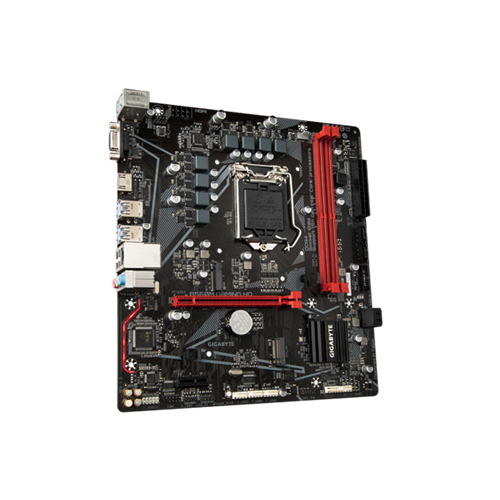

Bo mạch chủ Gigabyte B560M GAMING HD
2350000
